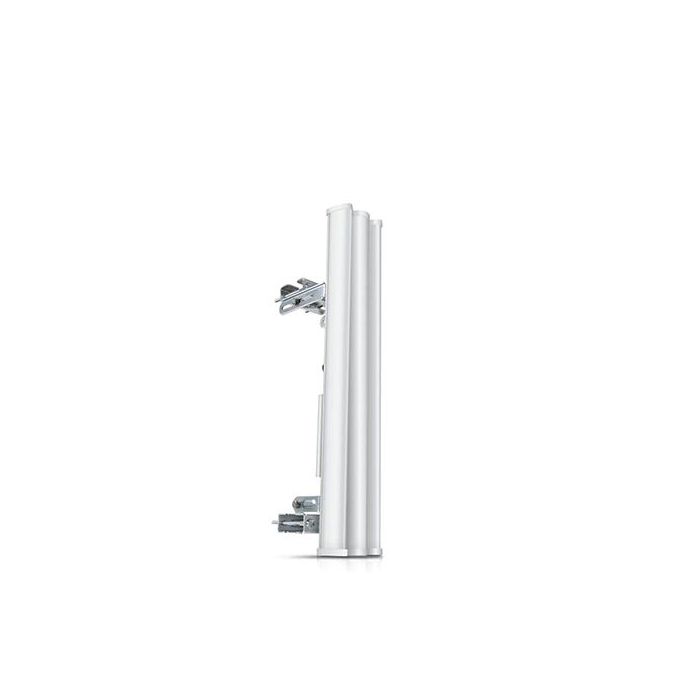

Ubiquiti AirMax 5Ghz 2X2 MIMO 19dbi 120 Degree Sector

Ubiquiti AirMax 5Ghz 2X2 MIMO 19dbi 120 Degree Sector

Rocket M Seamlessly Integrates with the AirMax Sector

Revolutionary, Cost/Performance Breakthrough Carrier Class, 5GHz AirMax 2×2 MIMO Basestation Sector Antenna. Available in several frequencies, gain and horizontal patterns, these all-new 802.11n MIMO 2×2 sector antennas are optimized for the new airMAX software and M series Ubiquiti radios.

World Class Antenna Designs:

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2×2 MIMO PtMP BaseStation. Instantly pair with Rocket M5 to create a powerful AirMax 2×2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

Order now at Deus.com.gh and have it delivered right at your doorstep.

Antenna Characteristics:

• Frequency Range: 5.10-5.85GHz
• Gain: 18.6-19.1dBi
• Polarization: Dual Linear
• Cross-polarization Isolation: 28dB min
• H-Pol beamwidth (6 dB): 123 deg
• V-Pol beamwidth (6 dB): 123 deg
• Elevation Beamwidth (6dB): 4 deg
• Electrical Downtilt: 2 deg
• ETSI Specification: EN 302 326 DN2
• Dimensions: 700X145X79mm
• Weight: 5.9kg
• Wind Loading: 160 mph
• Includes two SMA RP jack sockets for radio connections.
• Antenna is supplied with two pigtails to connect a Rocket M5
