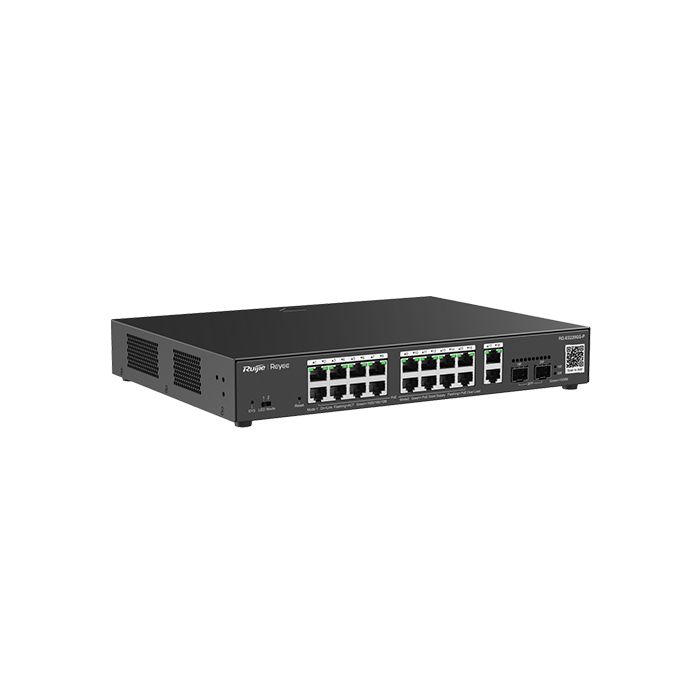

Ruijie Reyee Rg-Es220gs-P – 18-Port Gigabit Smart Switch With Poe

The RG-ES220GS-P from Ruijie Reyee is a high-performance managed switch featuring 16 Gigabit PoE+ ports and 2 Gigabit SFP uplinks for seamless networking. With a total PoE budget of 230W, this switch is perfect for powering IP cameras, wireless access points, and VoIP phones. Designed for SMBs, offices, and surveillance systems, it combines intelligent management, plug-and-play deployment, and advanced network protection.

Optimize your IP surveillance and enterprise networking with the Ruijie Reyee RG-ES220GS-P Smart PoE Switch. Power multiple devices, reduce clutter, and manage your network intelligently.

→ Shop now on deus.com.gh – smart power for a smarter network.

Key Features

• 18 Gigabit Ports – 16 × 10/100/1000 Mbps PoE+ ports + 2 × Gigabit SFP uplinks
• PoE+ Support – IEEE 802.3af/at, up to 30W per port
• 230W PoE Power Budget – Enough to power multiple IP cameras and APs
• Smart Management – Supports VLAN, QoS, Loop Detection, Port Mirroring
• Surge Protection – 6kV lightning protection for reliable performance
• Fanless Silent Design – Ideal for quiet environments
• Energy Efficient – Smart power management for long-term operation
• Plug and Play – Easy setup for IP surveillance and small networks

Technical Specifications

Specification                                                 Details

Model                                                             RG-ES220GS-P

Switching Capacity                                        36 Gbps

Ports                                                               16 × Gigabit PoE+ + 2 × Gigabit SFP

PoE Standard                                                 IEEE 802.3af/at (PoE+)

PoE Budget                                                   230W Total

Max PoE per Port                                          30W

Packet Forwarding Rate                                26.8 Mpps

Management                                                  Web-based Smart Management

Lightning Protection                                      6kV

Dimensions                                                    330 mm × 230 mm × 44 mm

Mounting                                                       Desktop / Rack-mount (1U)

Power Requirements

• Power Input: AC 100–240V, 50/60Hz
• Power Consumption: Max 250W (Full Load)

Dimensions & Weight

• Size: 330 × 230 × 44 mm
• Weight: ~3.2 kg
• Mounting: Rack or desktop installation
