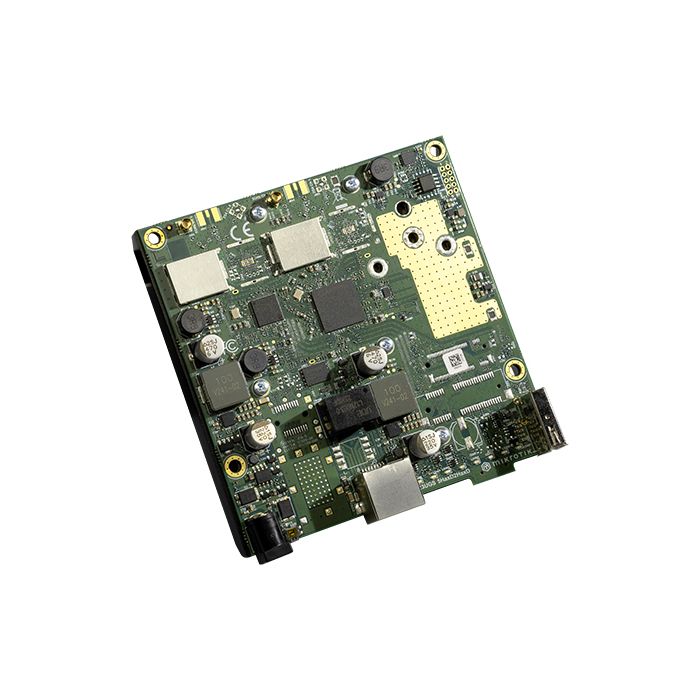

Microtik L11ug-5haxd Router Board

Build your own custom 5 GHz CPE!

MMCX connectors allow creating versatile omnidirectional access points and powerful point-to-point links.

You can integrate L11UG-5HaxD in a variety of setups, such as vending machines, ATM’s, ticket stations, and more, but for a standalone build you might want to order one of our aluminum indoor cases. The same ones you would use for RB411, 911, 912 and 922, so they are reusable. You can save the planet and your wallet at the same time!

If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.

Order now at Deus.com.gh and have it delivered right at your doorstep.

Technical Specification

Product code                                                               L11UG-5HaxD

CPU                                                                            Dual-Core IPQ-5010 800 MHz

CPU                                                                            architecture ARM

Size of RAM                                                               256 MB

Storage                                                                        128 MB, NAND

Number of 1G Ethernet ports                                     1

USB port                                                                     1 USB 2.0 port type A

Concurrent clients per interface                                  128

Wireless band                                                              5 GHz

Wireless interface model                                             QCN-6102

Wireless                                                                      802.11a/n/ac/ax dual chain

Dimensions                                                                 107 x 114 x 27 mm

Operating system                                                        RouterOS v7, License level 4

Operating temperature                                                -40°C to +70°C

Number of DC inputs                                                 2 (PoE-In, DC jack)

PoE-In input Voltage                                                  18-28 V

DC jack input Voltage                                                12-28 V

Max USB current                                                        1.5 A

Power adapter nominal voltage                                  24 V

Power adapter nominal current                                   1.2 A

PoE-In                                                                         Passive PoE

Max power consumption (without attachments)        6 W

Max power consumption                                            12 W
