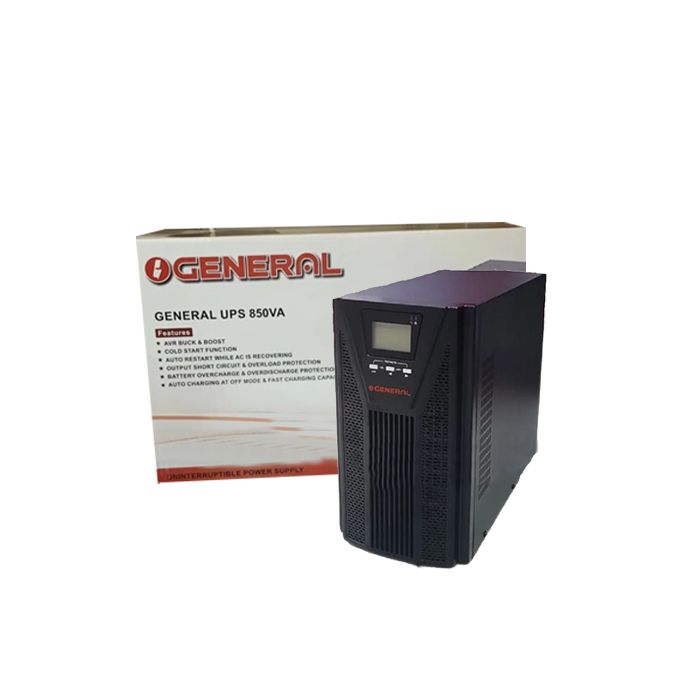

General 850va 230 Vac 50hz Ups

Wide input voltage range
Compatible with generators
Overload protection
Short circuit protection
Built-in AVR
Battery deep discharge protection & overcharge protection

Order now at Deus.com.gh and have it delivered right at your doorstep.

Specification
Rating input voltage 230VAC ±10%
Rating input frequency 50/60Hz ± 5%
Input phase Single-phase
Input socket With Fuse
Cold Start (0 to 100% load) Press the ON/OFF Switch
Input Range (220V) 140-300
Rating output (VA) 140-300
Rating output (VA) 850VA
Rating output (W) 420W
Waveform Battery Mode (simulated sine wave), AC mode (sine wave)
Power factor 0.6
Rating output voltage (V) 230VAC ± 10%
Output Range 20Vac-7% to +15% in battery mode
Rear output socket 3 x Universal – Battery backup
Transfer time TYPICAL 8-10ms
Line Mode Synchronize with the utility
Communication Interface optional RS232/RJ11
Rating frequency 50/60Hz ± 5%
Line-mode Synchronize with the Utility
Battery mode 50/60Hz  ± 1Hz
Line Mode FUSE& firmware protection
Battery Mode Software protection controlled by firmware
Battery Mode 110%±5%; Shutdown after 5 seconds, 120%±5%
Shutdown immediately
Rating 2 X 12V/7.5AH (Actual rating 7AH)
Backup time – Typical 10 to 20 mins (depending on load)
Charge current About 1A at normal mode.
Over charge protection 29V±0.2V stop charging, 27.4+/-0.2V recharge
Weight 8.6+/-0.3 Kg
Temperature 0-40°C
Humidity 0-90%
Dimensions per unit packaging 395x205x258mm
Pack size per Master carton 2
Dimensions per Master carton 410x430x273mm
