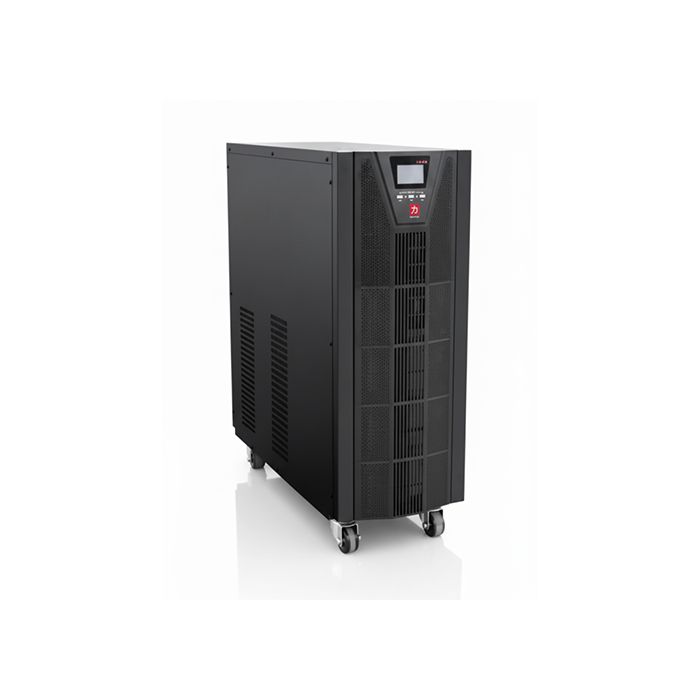

General 10kVA 3-Phase Online UPS (Uninterruptible Power Supply)

Ensure uninterrupted, stable, and reliable power for your sensitive equipment with the General 10kVA 3-Phase Online UPS. Designed for industrial, commercial, and IT environments, this UPS provides continuous protection against power failures, voltage fluctuations, and electrical noise.

With true double-conversion online technology, the system supplies clean and stable power to servers, medical equipment, networking devices, and data centers. The high-efficiency inverter and advanced microprocessor control ensure optimal performance, while intelligent battery management extends battery life and ensures reliability during outages.

Whether for office systems, telecom equipment, or production lines, the General 10kVA 3-Phase UPS is engineered to deliver consistent power quality and seamless backup operation.

Power Continuity You Can Trust.
Keep your systems running and your data protected with the General 10kVA 3-Phase Online UPS — available now at Deus.com.gh

Key Features

• True Online Double Conversion: Provides 100% clean, continuous power without interruption.
• High-Capacity Backup: Supports extended operation for critical loads during outages.
• 3-Phase Input/Output: Ideal for large-scale and industrial power systems.
• LCD Display Panel: Monitors input/output voltage, frequency, load level, and battery status.
• Intelligent Battery Management: Enhances battery life and optimizes charging efficiency.
• Wide Input Voltage Range: Stable performance even under fluctuating power supply.
• Low Noise Operation: Advanced cooling and inverter technology minimize acoustic output.
• Network Management Capability: Optional SNMP/USB/RS-232 interface for remote monitoring.
• Automatic Bypass Function: Ensures continuous operation during internal faults or maintenance.

Technical Specifications

Category                                            Specification

Brand                                                General

Model                                                 10kVA 3-Phase Online UPS

Capacity                                            10kVA / 8kW

Input Voltage                                    380/400/415V AC (Three Phase + Neutral)

Input Frequency                               50/60Hz ±10%

Output Voltage                                 380/400/415V AC ±1%

Output Frequency                            50/60Hz ±0.1Hz (Battery Mode)

Power Factor                                    0.8

Topology                                           True Double Conversion Online

Transfer Time                                  0 ms

Waveform                                         Pure Sine Wave

Battery Type                                     Sealed Lead-Acid, Maintenance-Free

Battery Voltage                                 240V DC (Depending on Configuration)

Backup Time                                    5–30 Minutes (Extendable with External Battery Packs)

Recharge Time                                 90% Capacity in 8 Hours

Display                                               LCD + LED Indicators

Communication Interface                RS-232 / USB / SNMP (Optional)

Noise Level                                        < 55 dB at 1 Meter

Operating Temperature                   0°C – 40°C

Relative Humidity                             0–95% (Non-condensing)

Dimensions (Approx.)                      260 × 500 × 700 mm

Weight (Approx.)                             55 – 65 kg (Depending on Battery Configuration)

Ideal Applications

• Data Centers & IT Equipment
• Corporate Offices & Banks
• Industrial Automation & Machinery
• Medical and Laboratory Equipment
• Telecom and Network Systems
