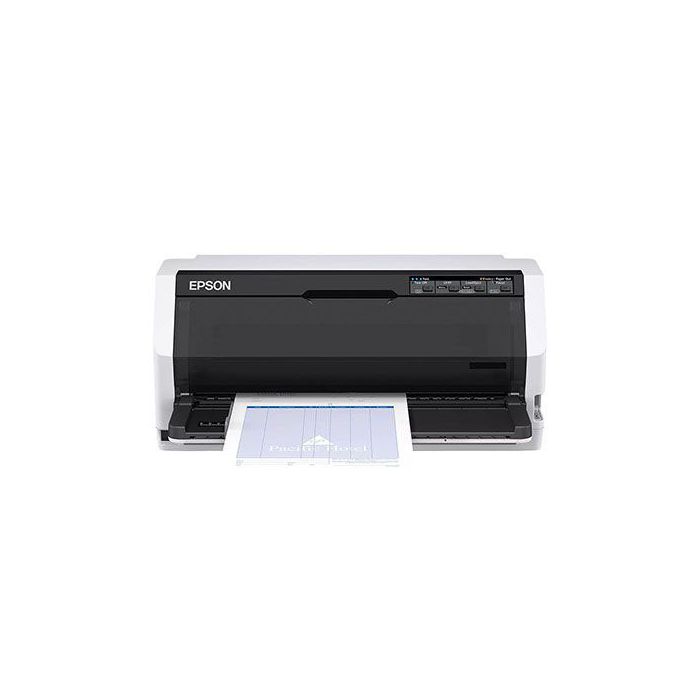

Epson LQ-690 Dot Matrix Printer

24-pin dot matrix printer

High speed Impressive print speed of 487 cps (10cpi) with 1+6 copies

Quality The 106 column capacity with 24 pins means greater quality

Reliable Combined power of print head life and MTBF of 20,000 hours

Modern design the black and white casing blends comfortably into any work environment

Fast printing:

Print faster and more productively. The LQ-690II prints the original + six copies, and is capable of printing an impressive 487 cps (10 cpi) when using printer resident fonts.

High ribbon yield:

In a demanding and fast-moving work environment a high ribbon yield is essential, and with 10 million characters per ribbon, this marks the LQ-690II as a leading force in the flatbed market. It is also cost-effective, with long ribbon replacement cycles, low running costs and total cost of ownership. In addition, the ribbon is transferrable, which means that you can use ribbons from your current printer in the new printer, resulting in less cost and waste.

Dependable:

Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours. The robust casing can stand up to high humid and heat conditions, which makes the LQ-690II ideal for any work environment. This results in greater productivity and less maintenance from down time - essential when producing large amounts of documents and data.

Smart design:

This compact hard-working printer is designed to fit on your desk. With its modern, black and white casing, it blends in seamlessly in both office and warehouse environments.

Tech Specs

The product features and specifications are subject to change without prior notice

Technology

Printing Method

Impact dot matrix

Number of Pins

24 pins

Number of columns

106 columns

Pins

24 Needles

Print

Printing Speed

HighSpeed-Draft: 10 cpi: 487 chars/s, 12 cpi: 529 chars/s, Draft: 10 cpi: 366 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 121 chars/s, 12 cpi: 132 chars/s

Barcodes

Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E

Carbon Copies

6 plus one original

Character Tables

PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic

Printing Resolution

360 x 180 DPI

Connectivity

Interfaces

USB 2.0, Bidirectional parallel

Paper / Media Handling

Document Feed

Single sheet front, Continuous media rear, Paper output front

Paper Formats

Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper, Envelopes, Cardboard

Paper Thickness Continuous Paper

0,065 mm - 0,49 mm

Paper Thickness Label Base Sheet

0,16 mm - 0,19 mm

Paper Thickness Label Total Sheet

0,16 mm - 0,19 mm

Paper Thickness Multi Part

0,12 mm - 0,49 mm

Paper Thickness Single Sheet

0,065 mm - 0,15 mm

General

Power consumption

38 Watt, 3 Watt (standby)

Product dimensions

480‎ x 301 x 211 mm (Width x Depth x Height)

Product weight

6,8 kg

Supported Temperature

Operation 5° C - 35° C

Supported Humidity

Operation 10% - 80%

Compatible Operating Systems

Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows 98, Windows Vista, Windows XP, Windows XP SP3 or later (32-bit), Windows Server 2003 SP2 or later

Included Software

Epson Status Monitor

Mean Time Between Failures

20.000 hours

Print Head Life

400 Million Strokes/Wire

Noise

Operation: 59 dB (A)- Standby: 54 dB (A)

Fonts

Bitmap font EPSON Courier (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON Draft (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON OCR-B (10 CPI), Bitmap font EPSON Orator (10 CPI), Bitmap font EPSON Orator-S (10 CPI), Bitmap font EPSON Prestige (10 CPI, 12 CPI), Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Sans Serif (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Script (10 CPI), Bitmap font EPSON Script C (Proportional), Scalable font EPSON Roman, Scalable font EPSON Roman T, Scalable font EPSON Sans Serif, Scalable font EPSON Sans Serif H

Memory

128 kB Included

Ribbon Yield

10000000 characters Black Draft

Other Features

Emulations

ESC/P2, IBM PPDS

What is in the box?

Driver and utilities (CD)

Main unit

Power cable

Ribbon

Setup guide

Software (CD)

User manual (CD)

Warranty document

Accessories

Epson SIDM Black Ribbon Cartridge for LQ-690 (C13S015610)

Quality assurance during production

Exact fitting ribbon cassette

Extremely fast drying ink
